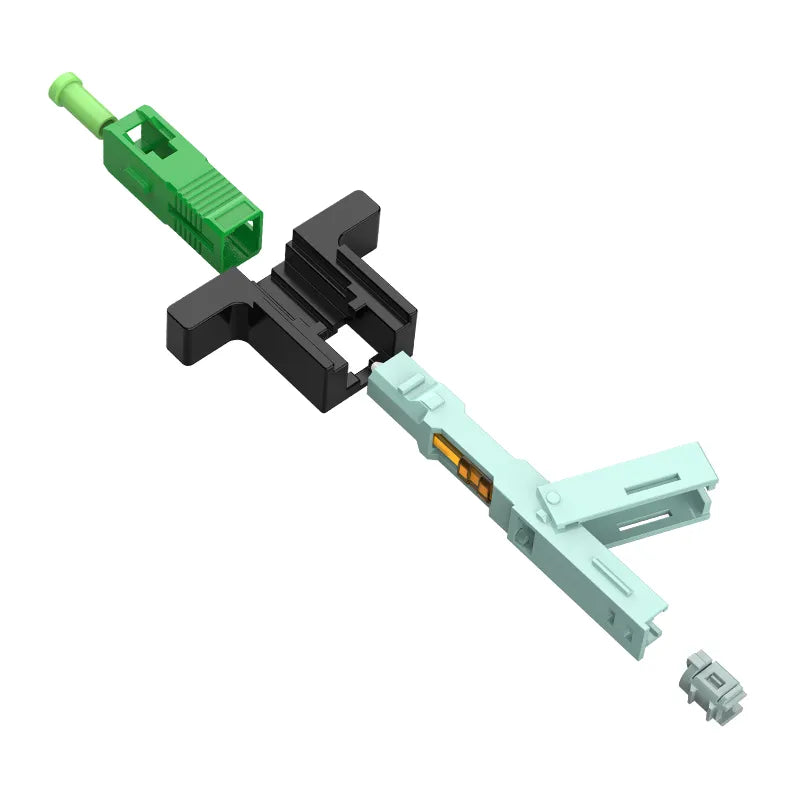

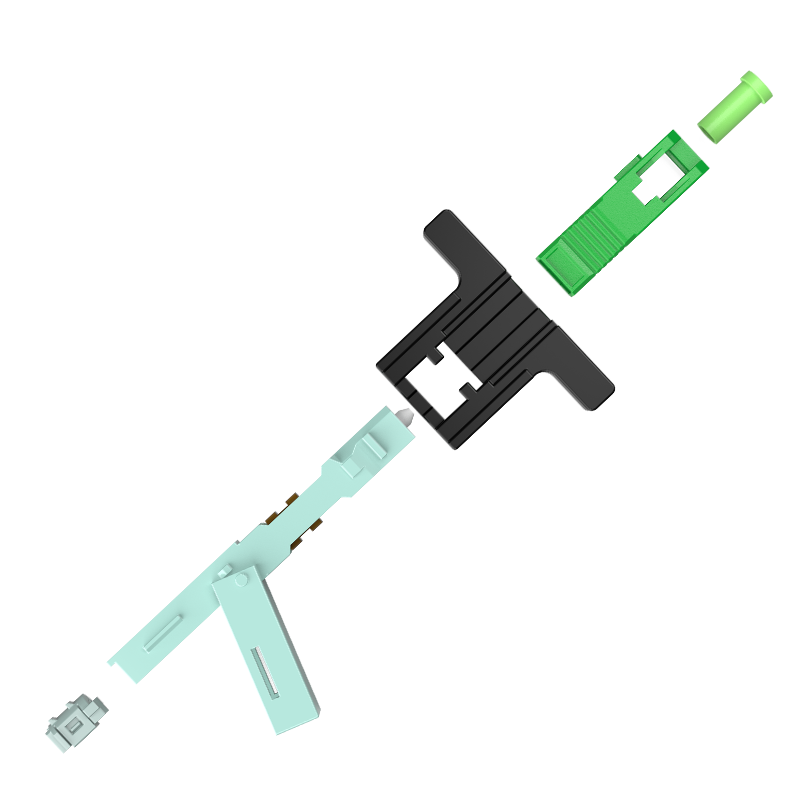

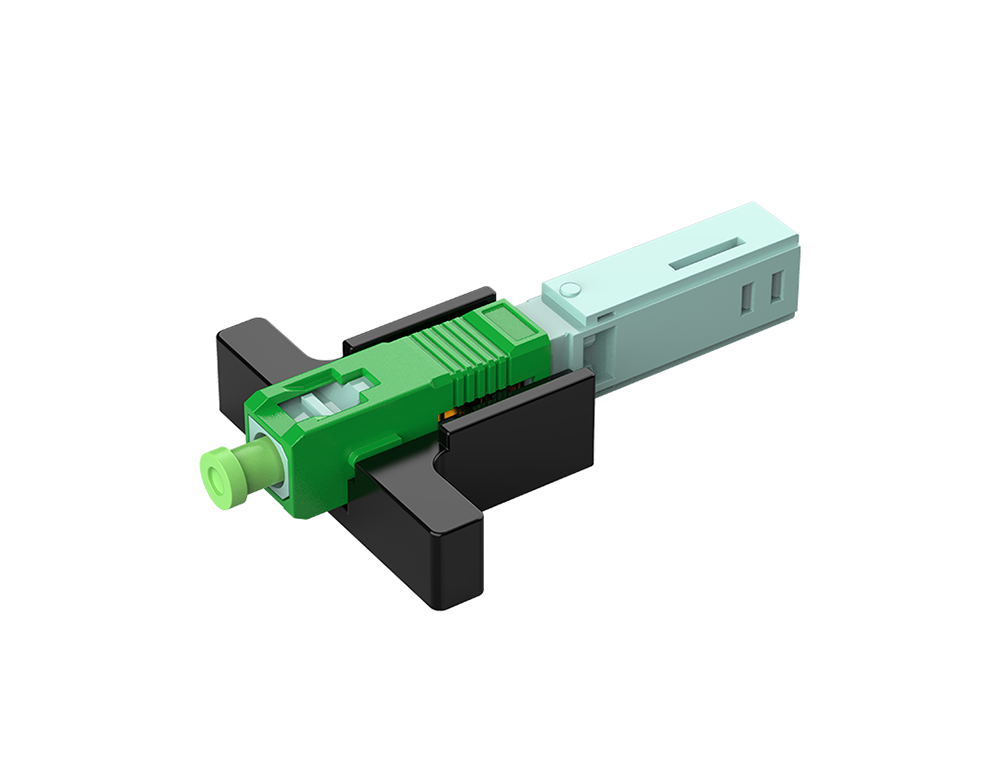

GC2663 - 3F Aircraft Flip Type

Key Features

• Push-Tube fixed structure, fiber fixed, stable and reliable connecting.
• Integrated structure, simple structure, stable and reliable, excellent comprehensive cost.
• Applicable optical cable: 2.0mmx3.0mm drop cable.
• Tail thread type cable, excellent tensile performance, >40N/2min.
• The operation is simple, the construction speed is fast, the installation success rate is high, the life cycle is long, and the maintenance is simple and convenient.

Product Specifications

Model

GC2663

Insertion Loss

≤0.25 dB (UPC) / ≤0.3 dB (APC)

Return Loss

≥50 dB (UPC) / ≥55 dB (APC)

Tensile Strength

>40 N/2min

Operating Temperature

-40~+85 ℃

Repeatability

≤0.2 dB

Reassembly

≥10 Times

Repeat Insertion And Removal

≥500 Times

Applicable Optical Cable

2.0×3.0 Drop Cable

Product Size

58x35x9 mm
