Grace Scientific Corporation

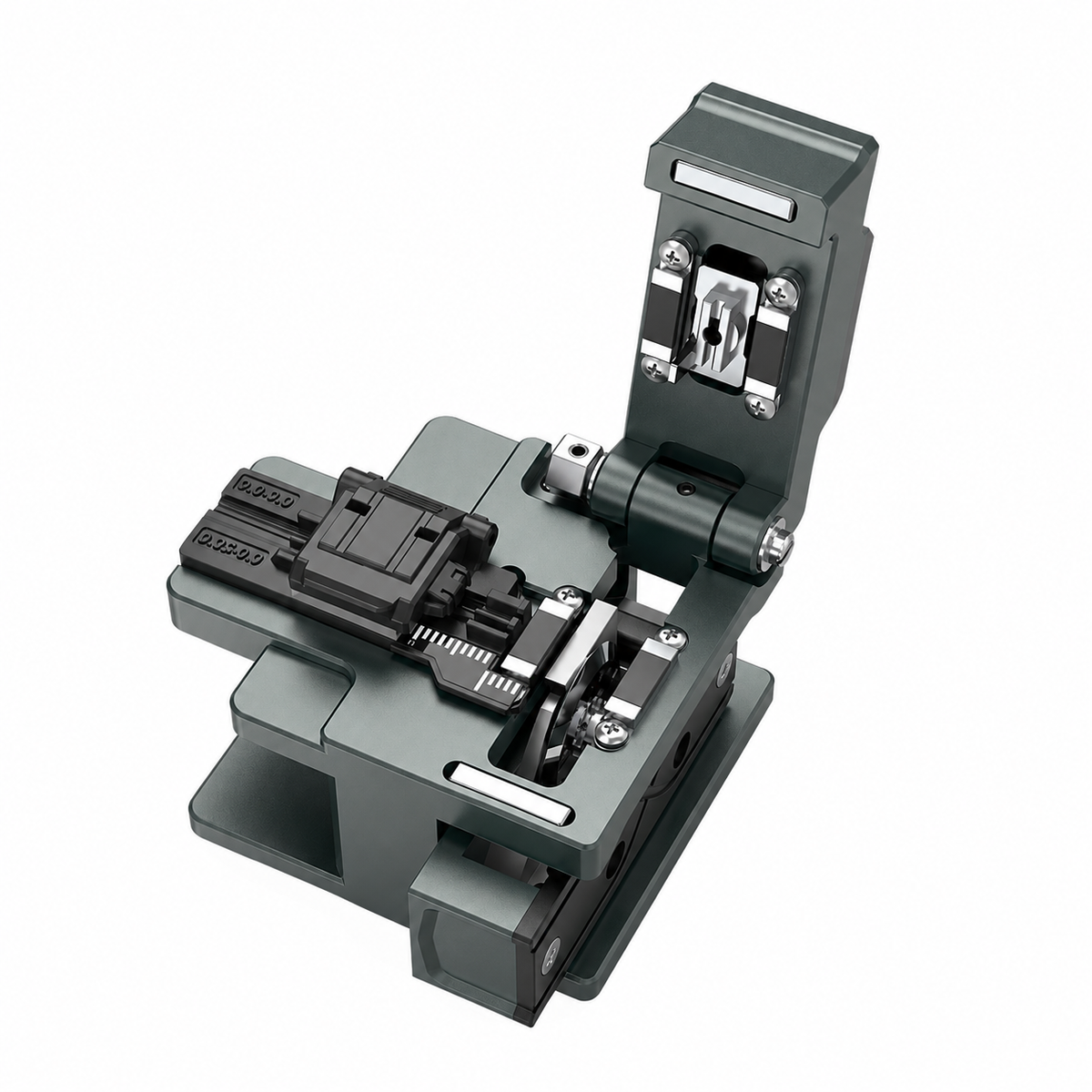

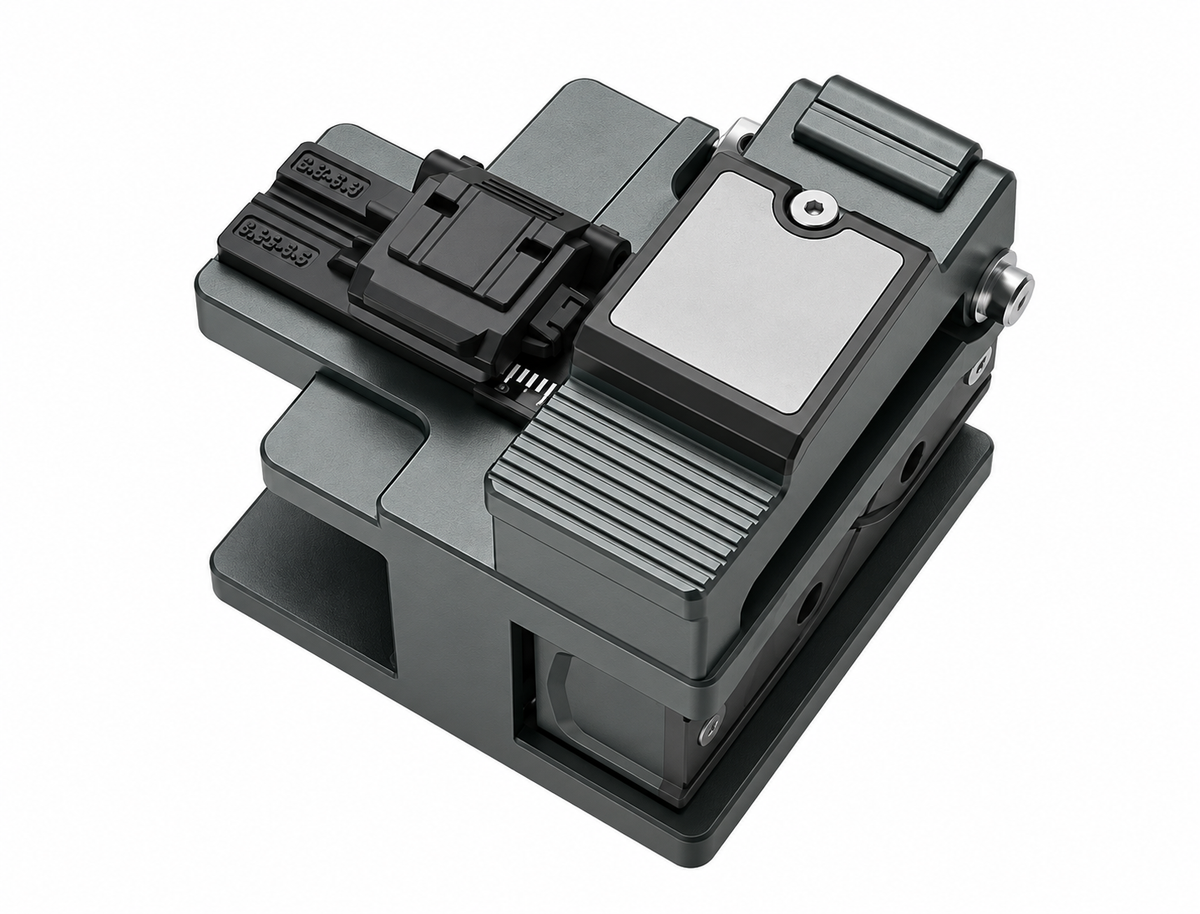

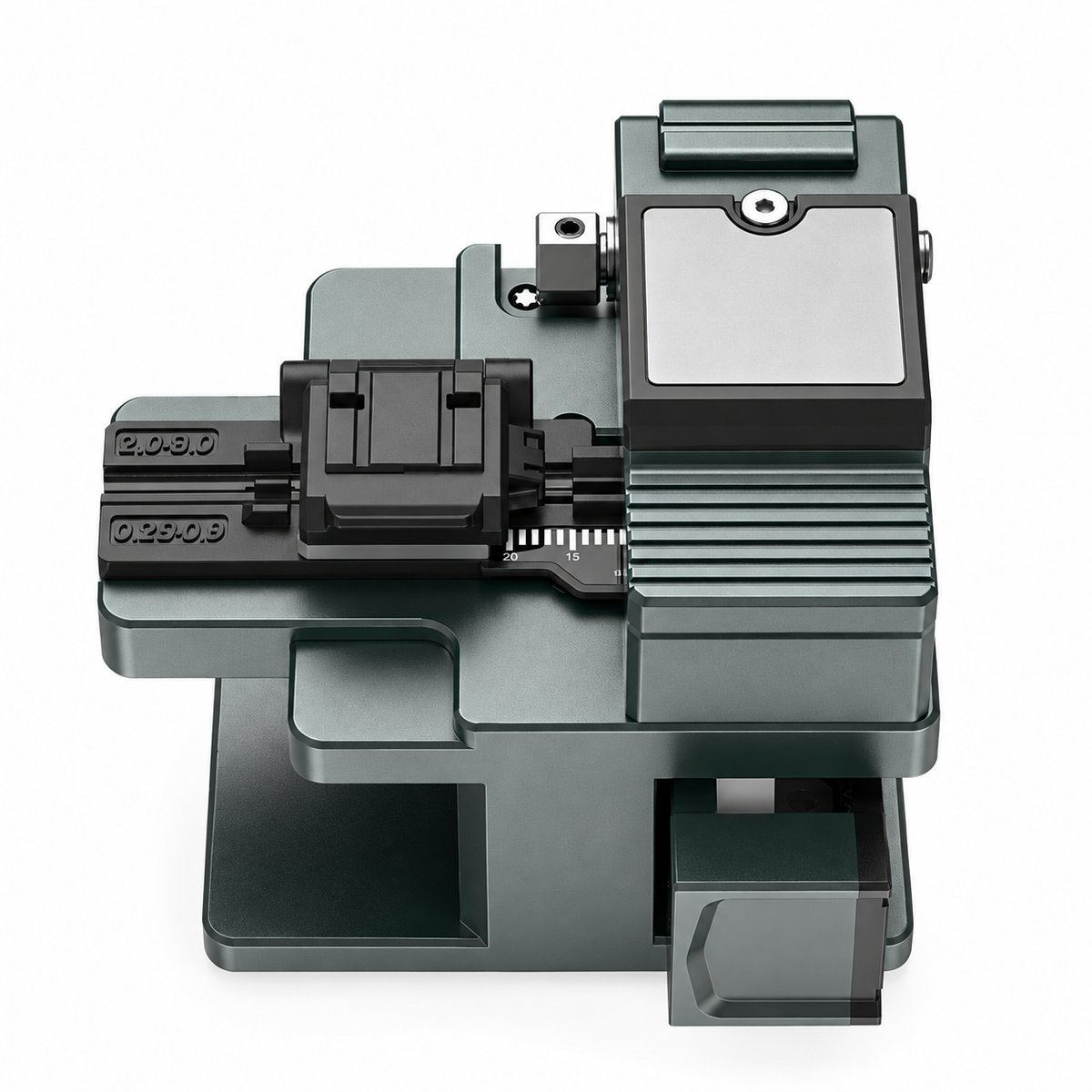

GC2644 - Handheld Optical Fiber Cleaver
GC2644 - Handheld Optical Fiber Cleaver
Regular price
Rs. 0.00 INR
Regular price
Sale price
Rs. 0.00 INR
Taxes included.
Dispatch Lead Time: 4-5 weeks
Quantity
Couldn't load pickup availability
Key Features
- Blade life up to 48,000 times
- Typical cleaving angle ≤0.5 degree
- All-in-one holder is suitable for various optical fibers of 250~3.0mm
- High-precision CNC machining and forming, excellent texture
- Tungsten steel blade, wear resistance, high hardness, corrosion resistance
- Palm-sized design, lightweight and portable
Product Specifications
| Fiber Material | Single fiber |
|---|---|
| Cladding Diameter | 125μm |
| Cleaved Length | 8~20mm |
| Applicable Fiber Cable | 0.25~3.0mm |
| Typical Cleaved Angle | Less than 0.5 Degrees ★① |
| Typical Blade Life | Total 48,000 fiber cleaves (replaceable) ★② |
| Off-cut Collector | / |
| Type of Offcut Bin | / |
| Auto Return | Pre-fitted |
| Dimension / Weight | 55W * 55D * 50H(mm) / 235g |
