Grace Scientific Corporation

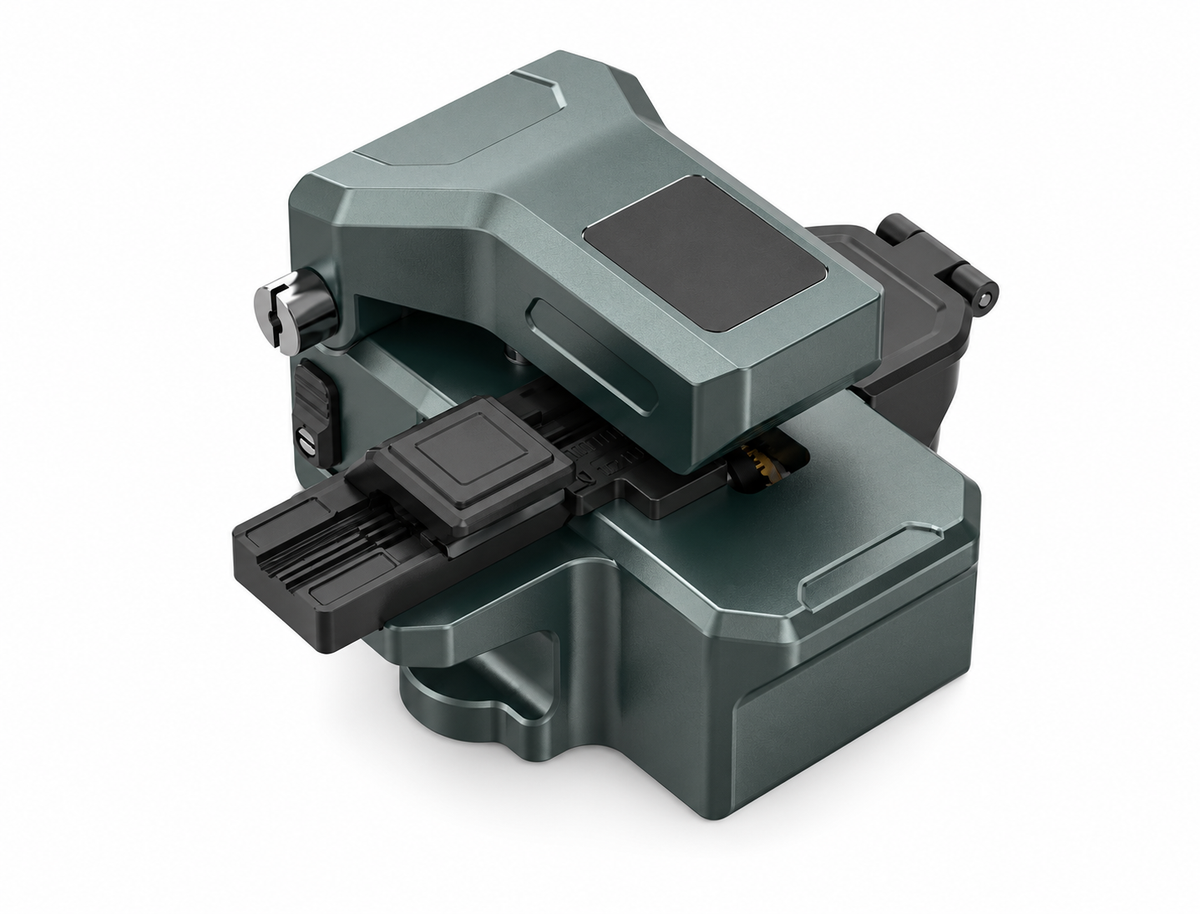

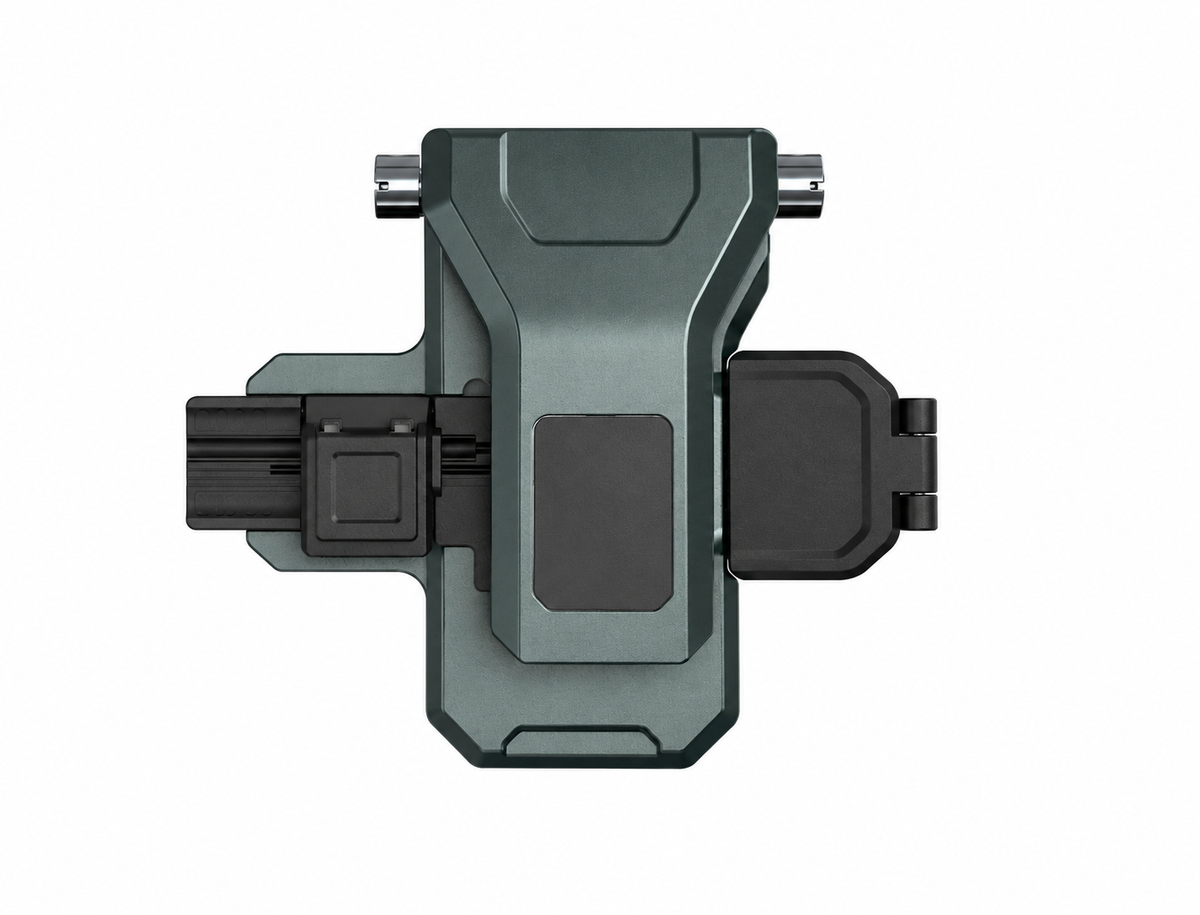

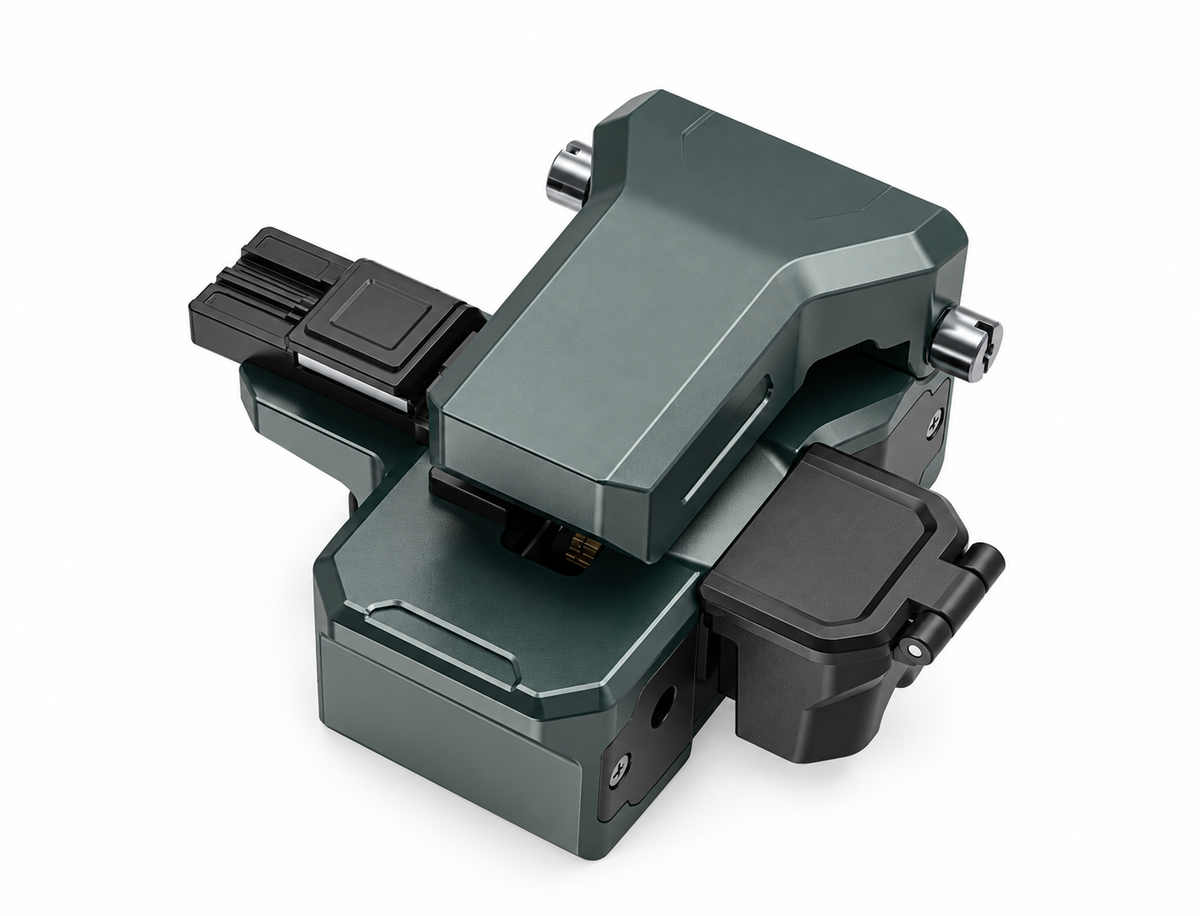

GC2642 - One-Step All-Metal Cleaver
GC2642 - One-Step All-Metal Cleaver
Regular price
Rs. 0.00 INR
Regular price
Sale price
Rs. 0.00 INR
Taxes included.
Dispatch Lead Time: 4-5 weeks
Quantity
Couldn't load pickup availability
Key Features
- All-Metal Material
- Blade Cleaving Lifespan: 72,000 (Replaceable)
- Typical Cleaving Angle <0.5°
- Tool-Free Blade Position Adjustment
- Metal + Rubber Pressure Pad
- Comes with three standard fixtures (Universal / Dual-core / 3-in-1)
- Enjoy lifetime free service
Product Specifications
| Product Model | GC2642 | |
|---|---|---|
| Tool-free cleaver adjustment | ✔ | |
| Cleaving diameter | 125um | |
| Cleaving length | Single-core: 8~20mm / Multi-core: 10mm | |
| Suitable optical fiber | Single-core: 250μm, 900μm, 3.0mm, drop cable / Multi-core: 2 to 12 core | |
| Cleaving angle | Typical value ≤0.5°* | |
| Blade life | 72,000 cycles (replaceable)* | |
| Dual-core fixture | Standard configuration | |
| Universal fixture | Standard configuration | |
| 3-in-1 fixture | Standard configuration | |
| Optical fiber storage box | Standard configuration | |
| Type of storage box | Manual operation | |
| Automatic cleaver return | Standard configuration | |
| Size | 76W * 93.10D * 50H (mm) | |
| Overall weight | 246.1g | |
| Metal weight | 212.6g |
