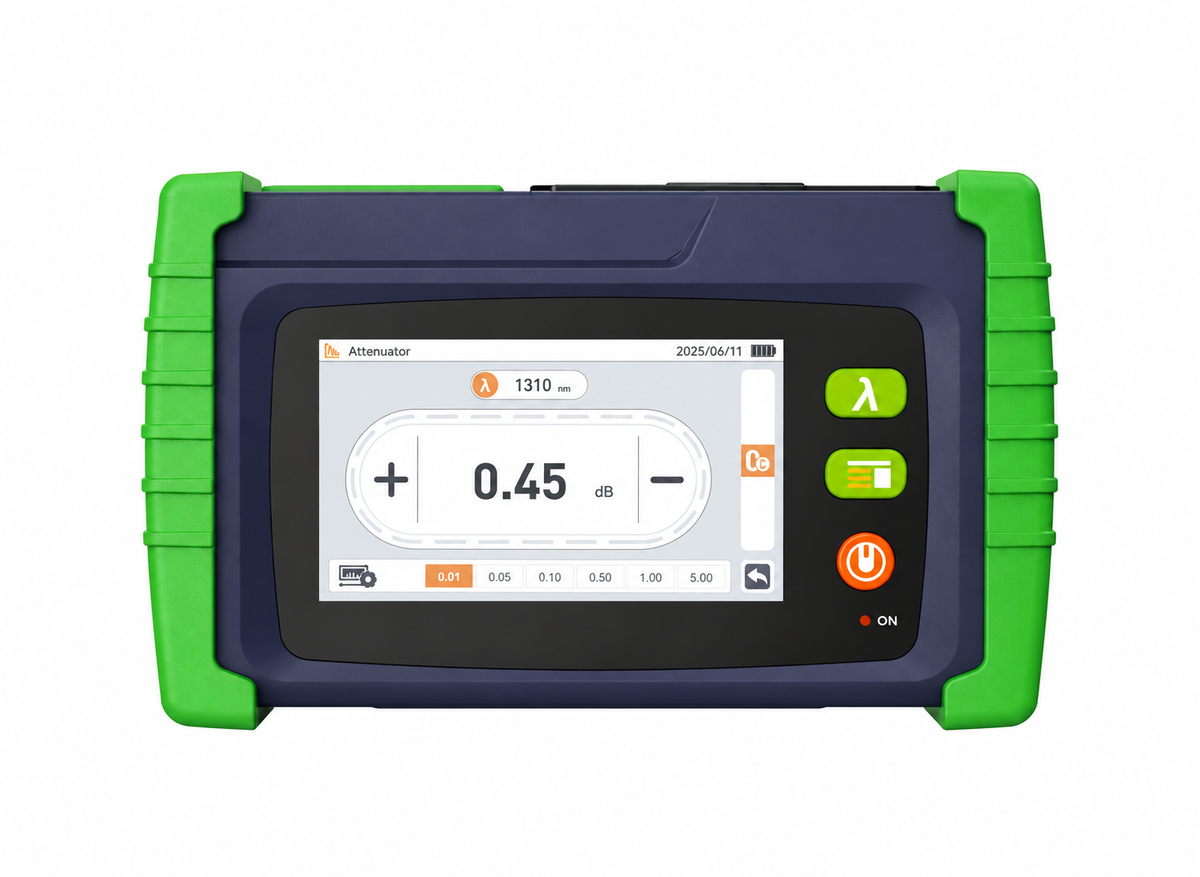

GC2632 - Optical Attenuator

Key Features

• 5000mAh high capacity battery
• 4.3-inch touch screen
• Customizable Calibration Wavelengths
• RJ45 Wire sequencing
• Handheld Compact and Light
• Lighting

Product Specifications

Attenuator Parameters

Calibration Wavelength

1310/1550（nm）

Peak Attenuation

40dB

Insertion Loss

≤2dB

Resolution Ratio

0.01dB

Attenuation Error

±0.2dB

Repeatability

±0.1dB

Maximum Input Power

24dBm

Working Temperature

-10~+50（℃）

Storage Temperature

-20~+60（℃）

Automatic Shutdown Time

10min

General Parameters

Language

English, Chinese, Spanish, French, Portuguese, Russian, Thai, Korean

Optical Fiber Port

SC/UPC

Display Screen

4.3-inch color LCD display screen

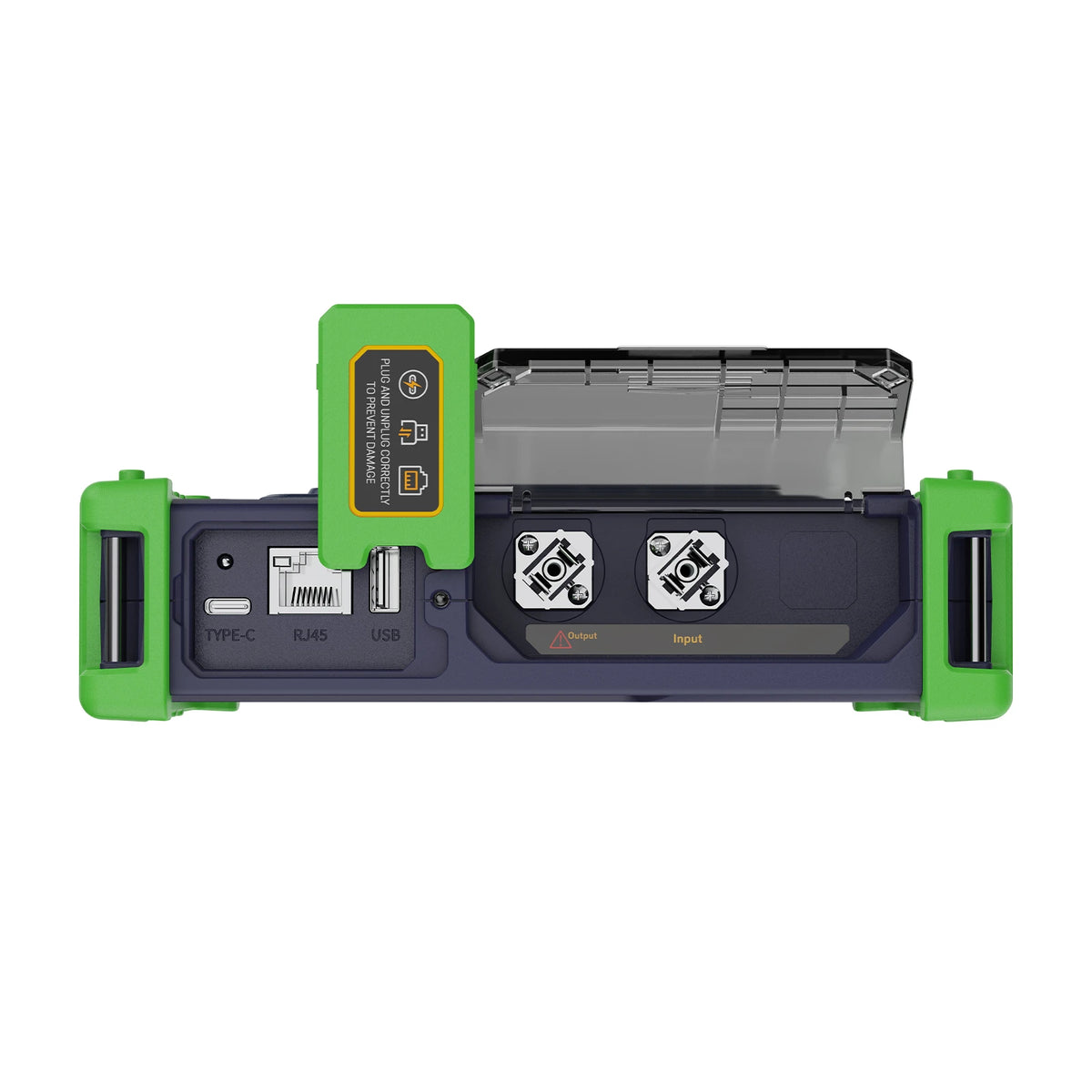

Port

Charging port x 1, USB 2.0 x 1, RJ45 x 1

Working Temperature

-10 ~ 50˚C (0-40 ℃ for use with power, 0 to 35 ℃ battery charging)

Storage Temperature

-20 ~ 60˚C

Operating Altitude

4000 m

Humidity

-0 ~ 90% RH (20% ~90% AC adapter, non-condensing)

Power Mode

100 - 240V AC, 50/60Hz (AC adapter)

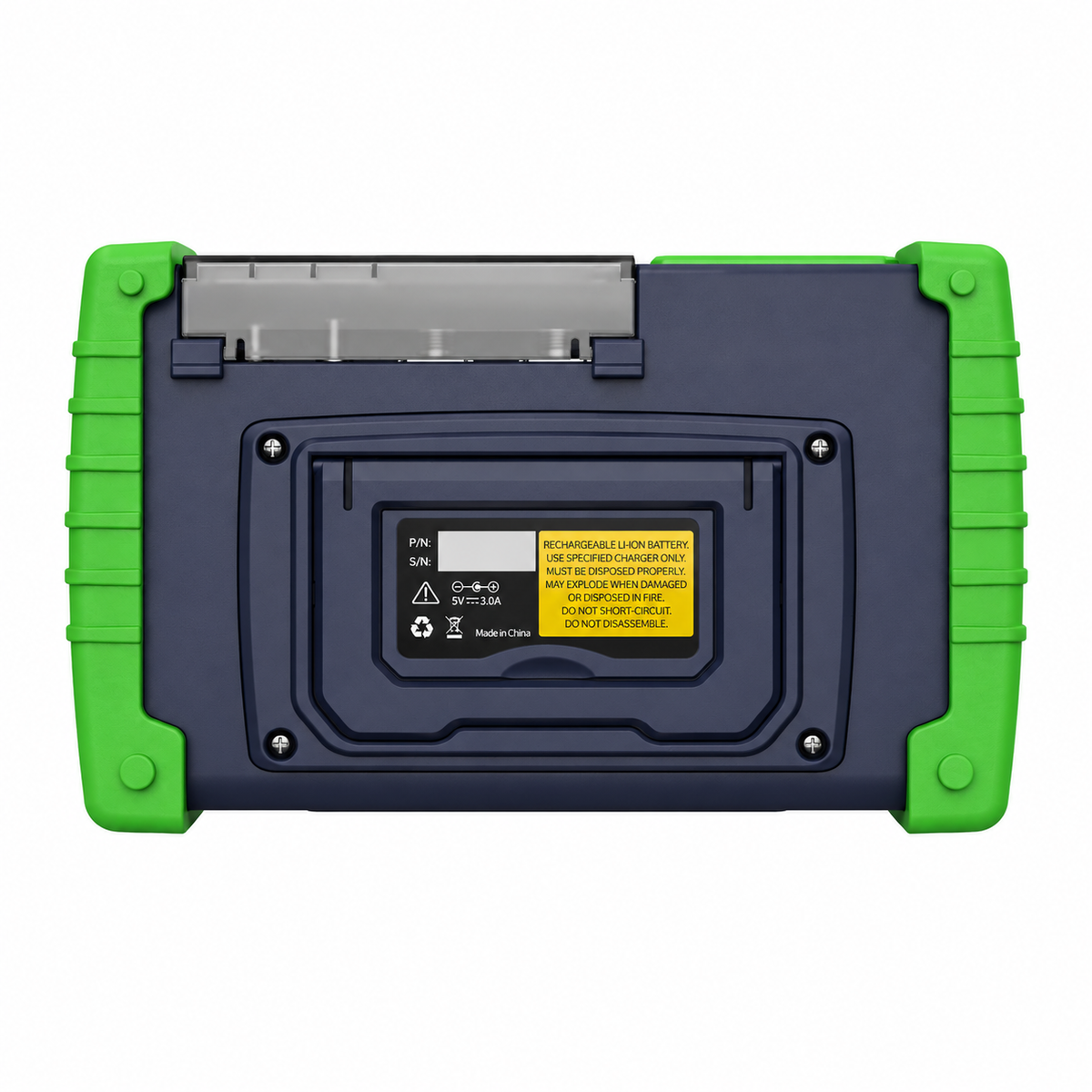

Battery

3.7V, 5000mAh, ≥18.5Wh

Auto Power-Off Time

10min

LED Lighting

Light Intensity >15000mcd

Data Storage

Memory: 1000 power measurement records; External Storage: USB

Size

179 mm (W) × 112 mm (H) × 48 mm (D)

Weight

0.6 kg (Unit + Battery)
