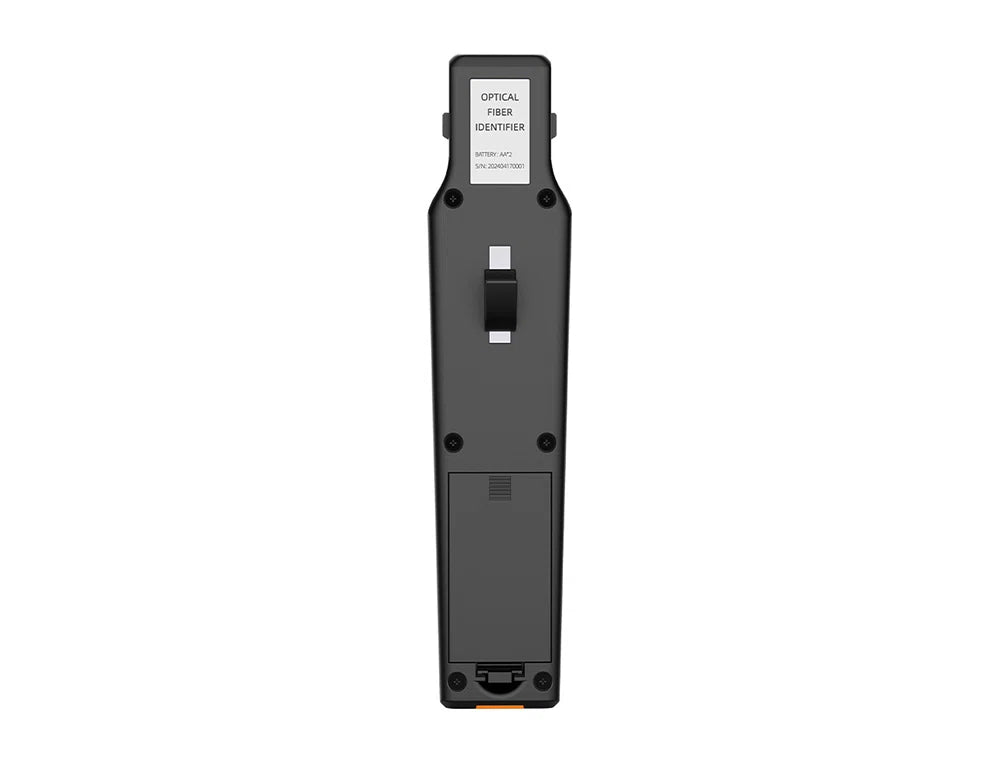

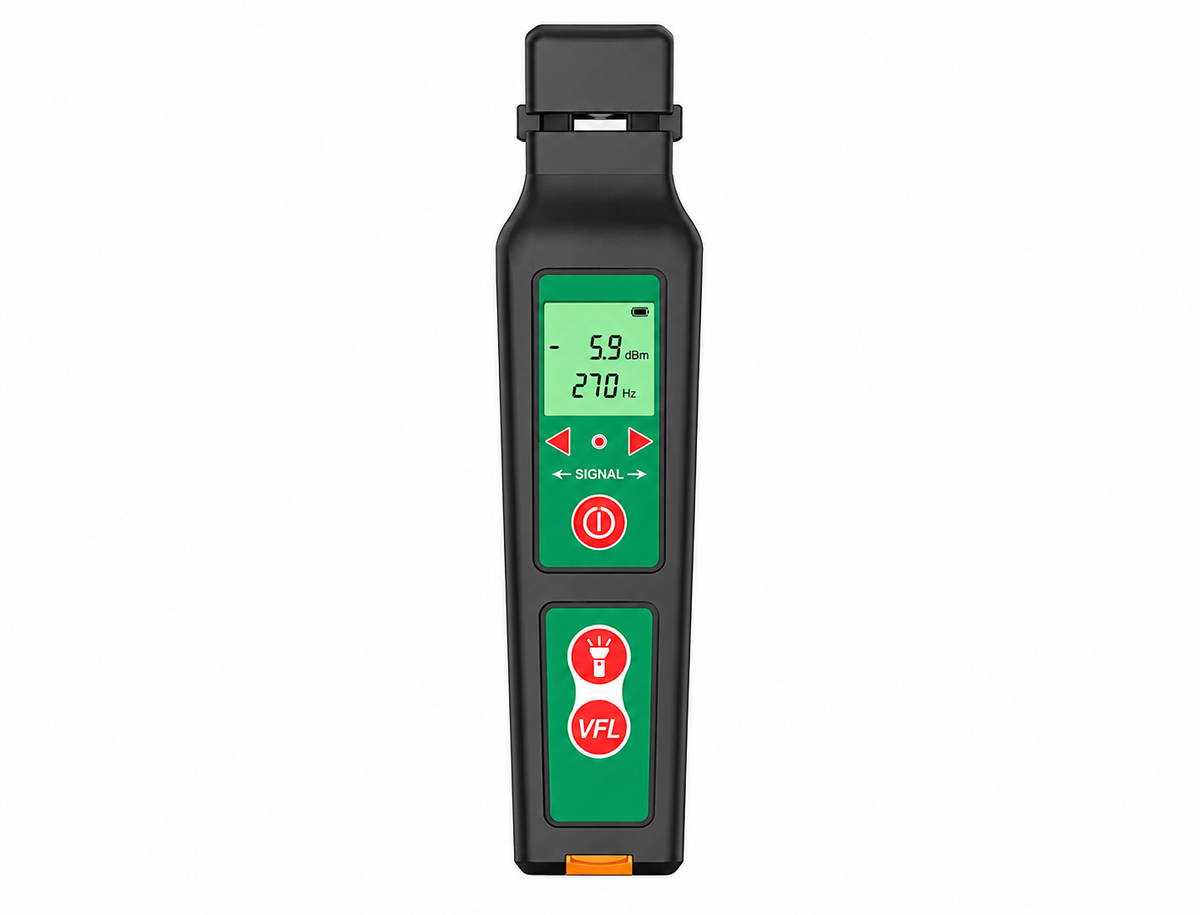

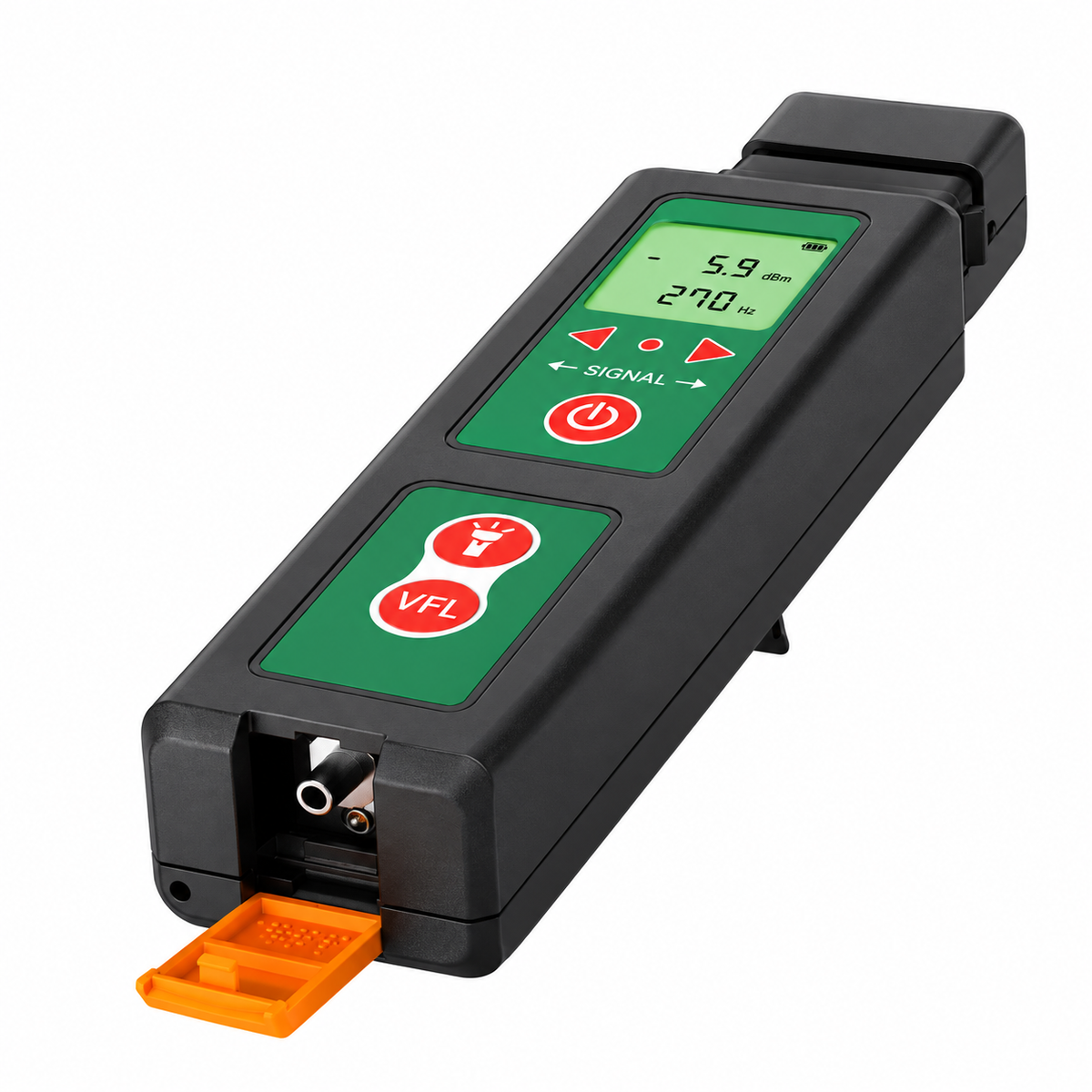

GC2631 - Optical Fiber ldentifier

Key Features

• Suitable for 0.25/0.9/2.0/3.0mm fibers
• Test sensitivity: -40dBm ~ 10dBm
• Easy to carry, no need to replace the chucks
• Configure VFL function, 2.5mm universal
• Test distance up to 5km, high stability
• Strong light source, strong penetrating power
• Equipped with LED light, more convenient to check the fibers in the dark
• LED backlight display, suitable for various environments without auxiliary lighting

Product Specifications

Model

GC2631

Wavelength Recognition Range

800nm ~ 1700nm

Signal Recognition Type

CW, 270Hz ±5%, 1kHz 5%, 2kHz 5%

Detector Type

φ1mm InGaAs 2 pcs

Adapted Fiber Type

Universal Holder for φ0.25 (Bare Fiber), φ0.9, φ2.0, φ3.0 Cable

Signal Direction

Left & Right LED

Optical Power Reading Range

-40 dBm ~ 10 dBm

Signal Frequency Range

270Hz, 1kHz, 2kHz

Power Type

AA*2 (Package without battery)

Operating Temperature Range

-10°C ~ 60°C

Storage Temperature Range

-25°C ~ 70°C

Dimension

219mm*45mm*28mm

Weight

235g

VFL Function

Power Range

10mW

Testing Distance

5~8KM

Wavelength

650nm

Laser Type

LD

LED Light

Support
