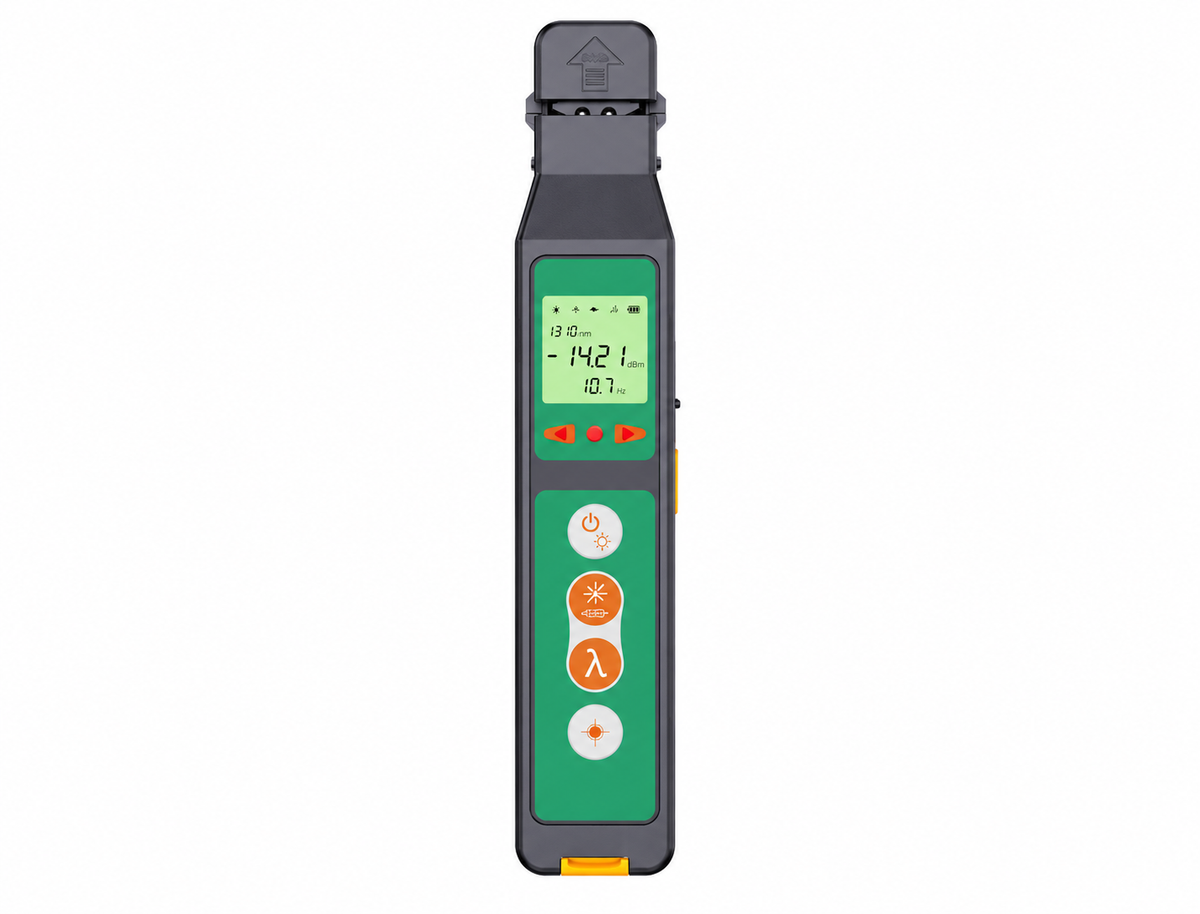

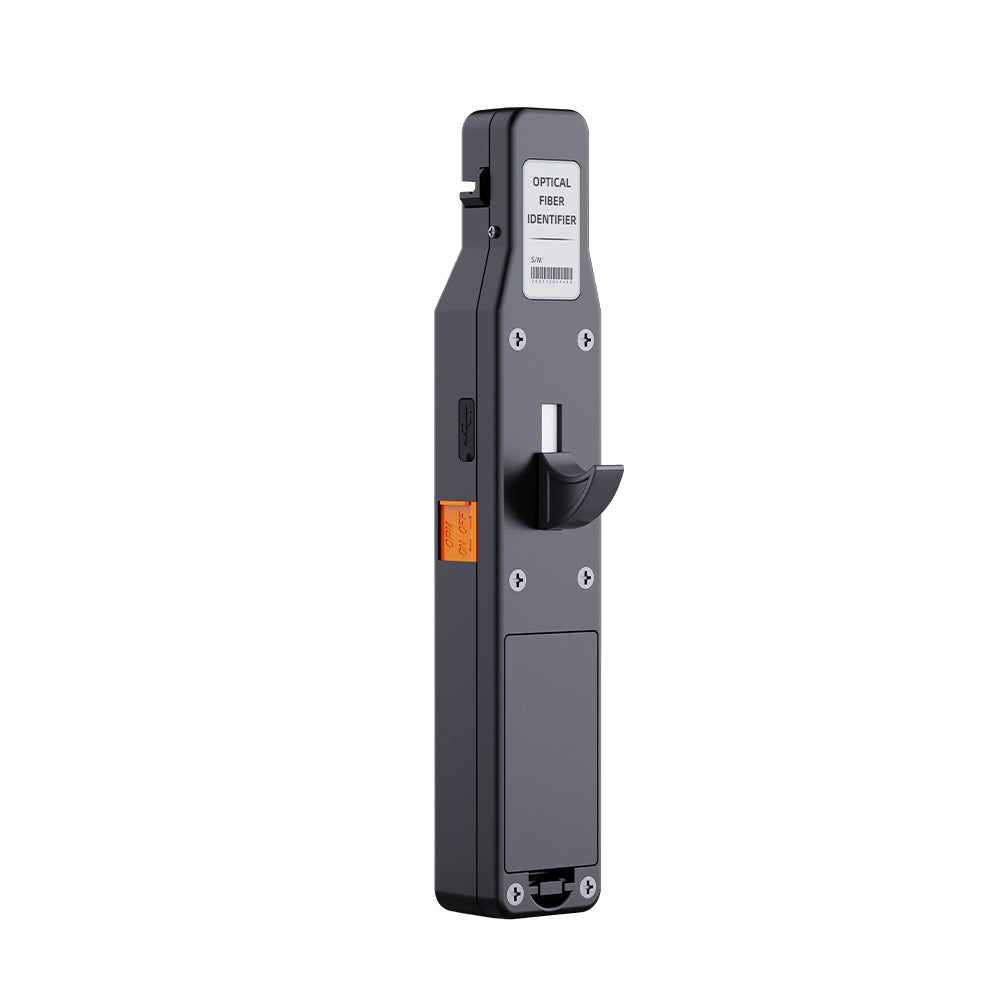

GC2630 - Optical Fiber Identifier

Key Features

• Suitable for 0.25/0.9/2.0/3.0mm fibers
• Test sensitivity: -40dBm to 10dBm
• Easy to carry, no need to replace the chucks
• Strong light source, strong penetrating power
• Test distance up to 5km, high stability
• Configure VFL function, 2.5mm universal connectors
• Be equipped with LED light, more convenient to check the fibers in the dark
• LED backlight display, suitable for various environments without auxiliary

Product Specifications

Model

GC2630

Wavelength Recognition Range

850~1625nm

Signal Recognition Type

CW, 270Hz ± 5%, 1kHz ± 5%, 2kHz ± 5%

Detector Type

φ 1mm InGaAs 2 pcs

Adapted Fiber Type

φ 0.25mm, φ 0.9mm, φ 2.0mm, φ 3.0mm

Signal Direction

Left & Right LED

Optical Power Reading Range

-40dBm ~ 10dBm

Signal Frequency Range

270Hz, 1kHz, 2kHz

Power Type

Alkaline Battery Type AA*2

Operating Temperature Range

-10℃ ~ 60℃

Storage Temperature Range

-25℃ ~ 70℃

Dimension

219*45*28mm

Weight

235g

VFL Function

Power Range

10mW

Testing Distance

5~8KM

Wavelength Range

650nm

Laser Type

LD

LED Light

YES

OPM Function

Wavelength Range

800~1700nm

Optical Power Testing Range

-70 ~ +6dBm / -50 ~ +26dBm

Standard Wavelength

850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm

Interface

2.5mm Universal Interface

Detector Type

InGaAs

Display Resolution

0.01dB

Accuracy

±0.2dB
