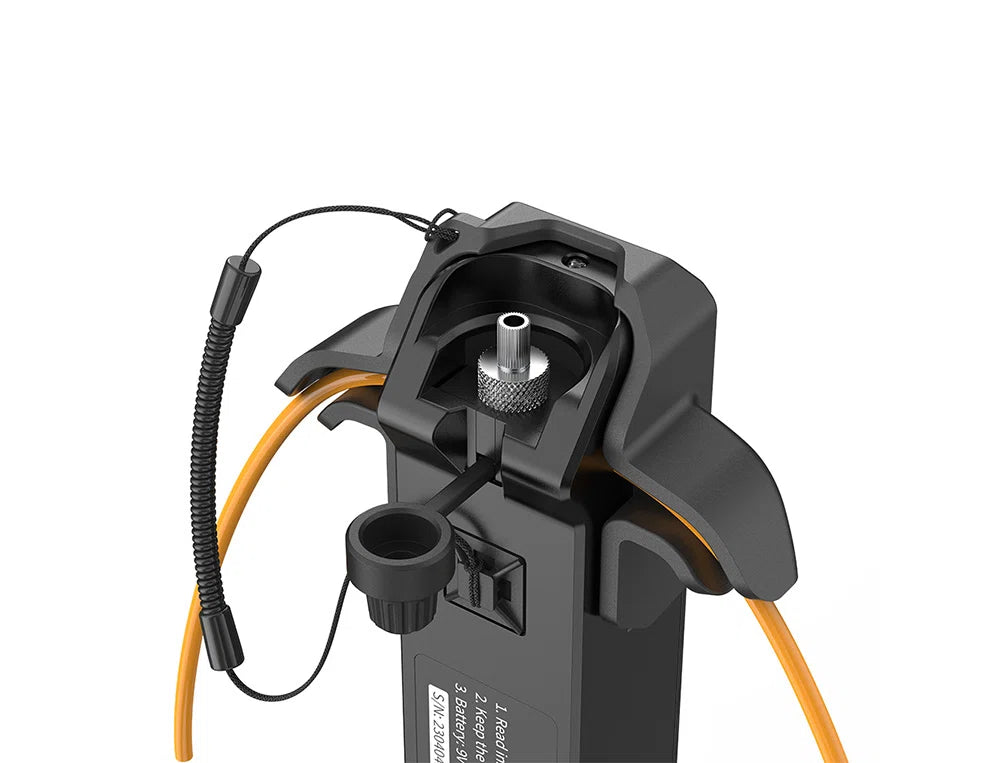

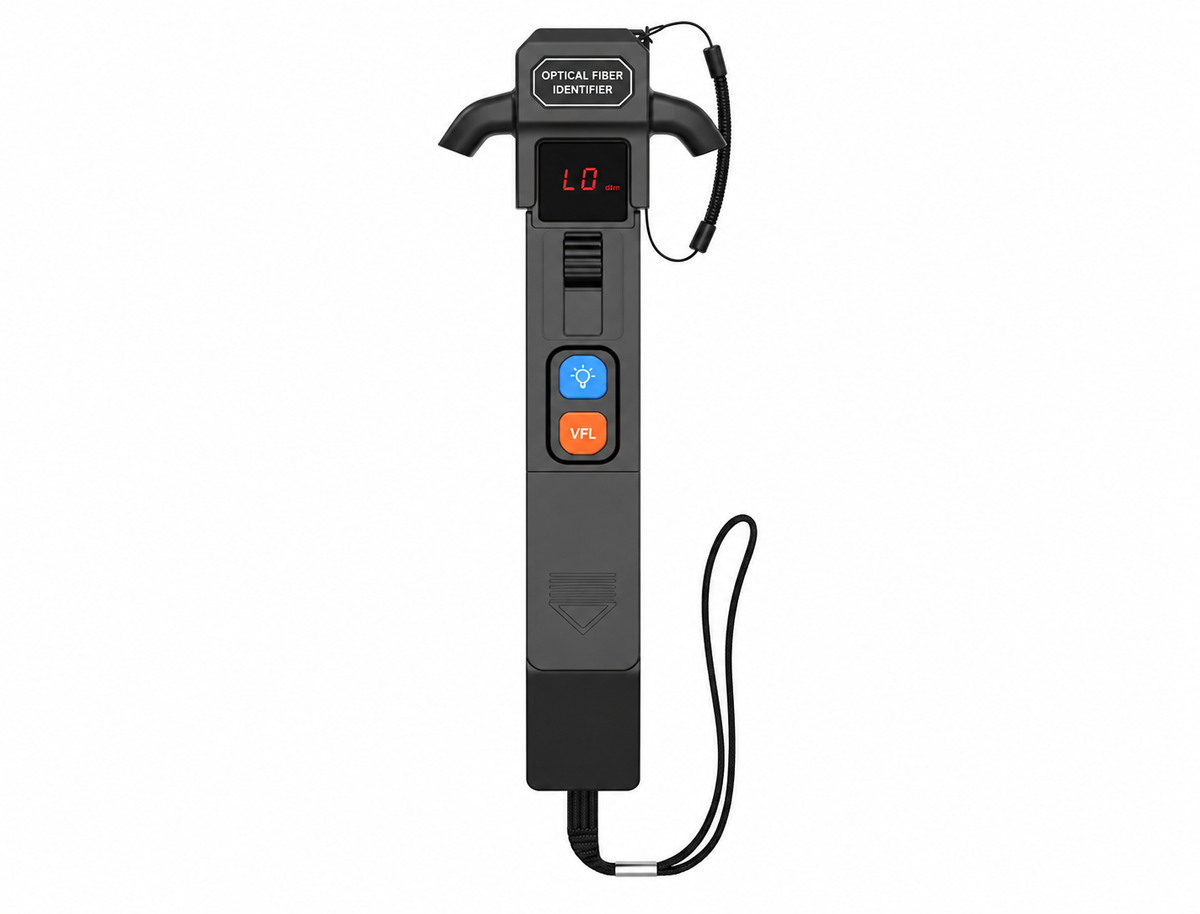

GC2629 - Optical Fiber Identifier

Key Features

• Displays relative optical power
• Tests online without interruption of the link
• Recognizes 270 Hz, 1 kHz and 2 kHz signals
• Comes with a hood to provide more accurate test results outdoors
• Identifies the propagation direction of light with sound alarm reminder
• Comes with VFL function
• LED display
• 4 fixtures support bare fiber, 0.9 mm, 2 mm and 3 mm fiber
• Low power reminder
• Test sensitivity: -40 dBm to 10 dBm

Product Specifications

Model

GC2629

Fiber Type

0.9 / 0.25 / 2.0 / 3.0 mm fiber

Identification Signal

270 / 1000 / 2000 Hz

Accuracy

Continuous Wave: +10 dB to -30 dBm

Modulated Signal: +10 dB to -25 dBm

Wavelength Range

800–1700 nm

Detector Type

InGaAs ×2

Sensitivity

+10 dB to -35 dBm

Dimension

244 × 82 × 40 mm

VFL

Power Range

10 mW

Testing Distance

5–8 km

Wavelength Range

650 nm

Laser Type

LD

LED Flashlight

Supported
