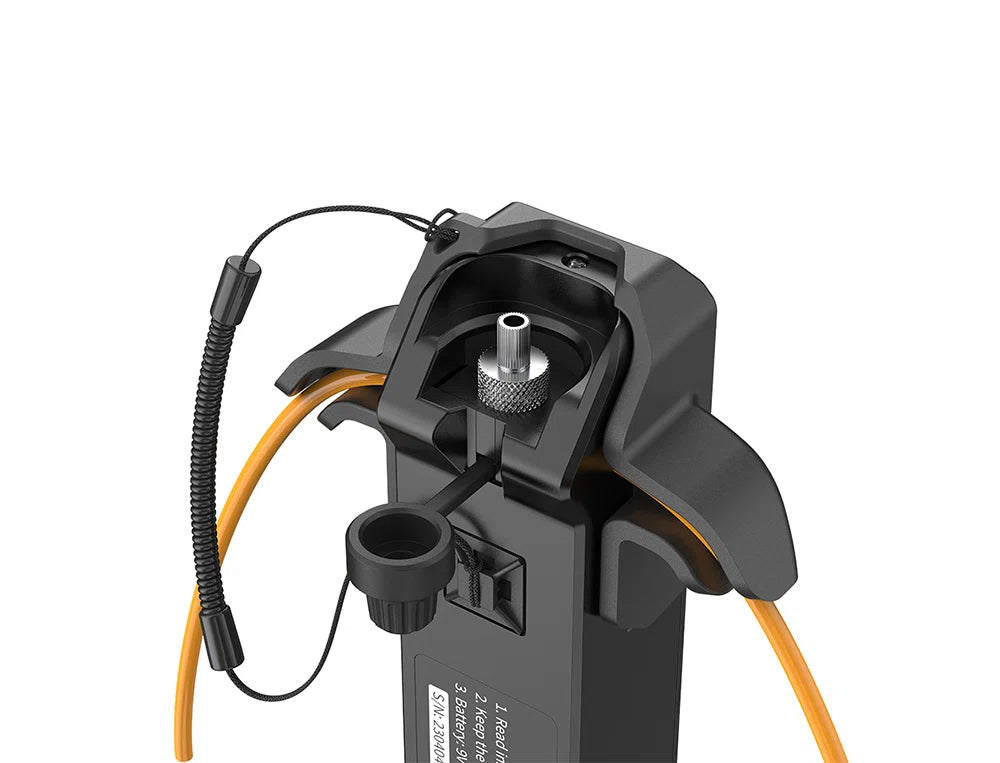

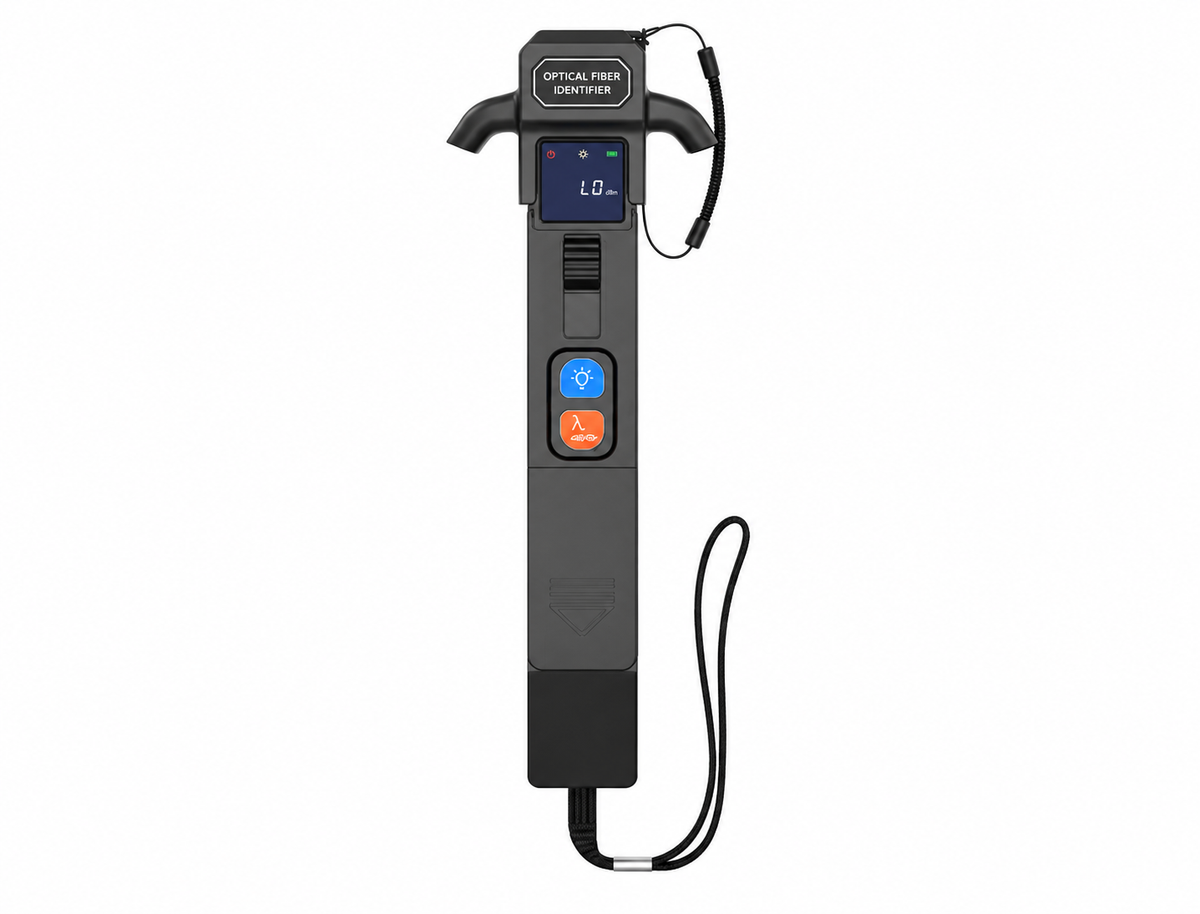

GC2628 - Optical Fiber Identifier

Key Features

• All-metal fuselage, CNC highly processed
• 4 kinds of chucks, easy to operate and change; suitable for 0.25 / 0.9 / 2.0 / 3.0 mm fiber
• Recognizable 2 kHz / 1 kHz / 270 Hz signal type with beeping sound
• LED display
• Identifies dominant signal direction
• Universal for SM & MM fiber
• Built-in LED light, convenient for line checking in the dark
• Configure OPM function, 2.5 mm universal interface

Product Specifications

Model

GC2628

Identified Wavelength Range

800–1700 nm

Fiber Type

0.9 / 0.25 / 2.0 / 3.0 mm

Frequency

270 Hz / 1 kHz / 2 kHz

Accuracy

Continuous Wave: +10 dB to -30 dBm

Modulating Signal: +10 dB to -25 dBm

Sensitivity

+10 to -35 dBm

Battery

9V ×1

Size

244 × 82 × 40 mm

OPM Function

Wavelength Range

800–1700 nm

Measurement Range

-70 to +6 dBm / -50 to +26 dBm

Standard Wavelength

850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625 nm

Optical Connector

2.5 mm Universal Interface + SC

Detector Type

InGaAs

Display Resolution

0.01 dB

Accuracy

±0.2 dB
