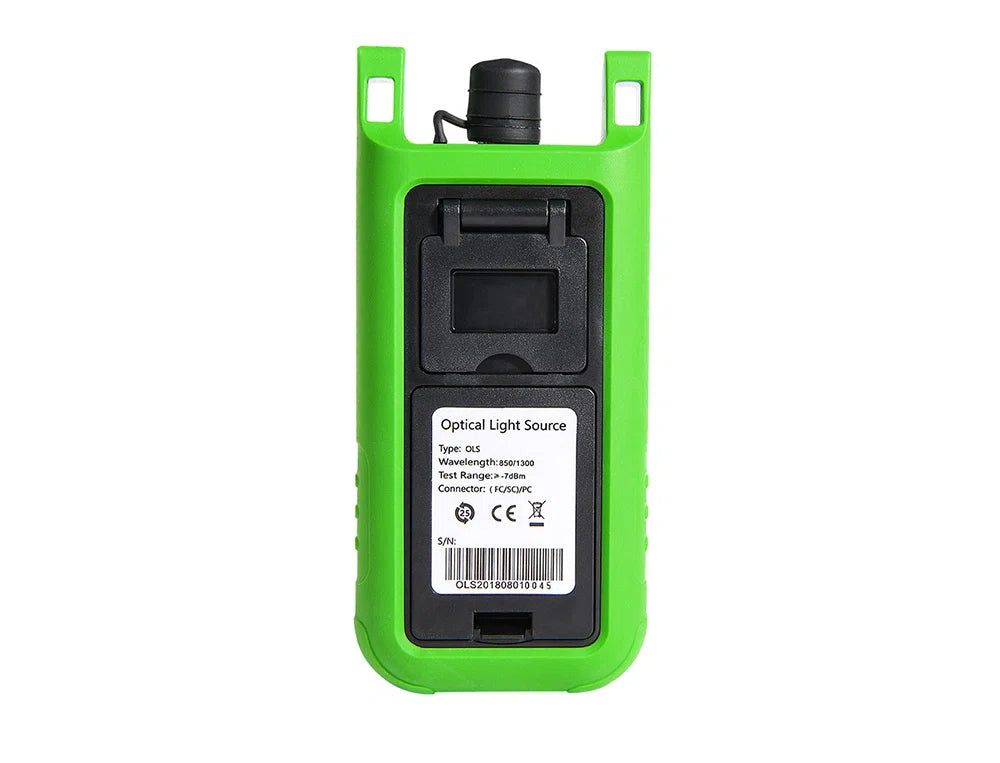

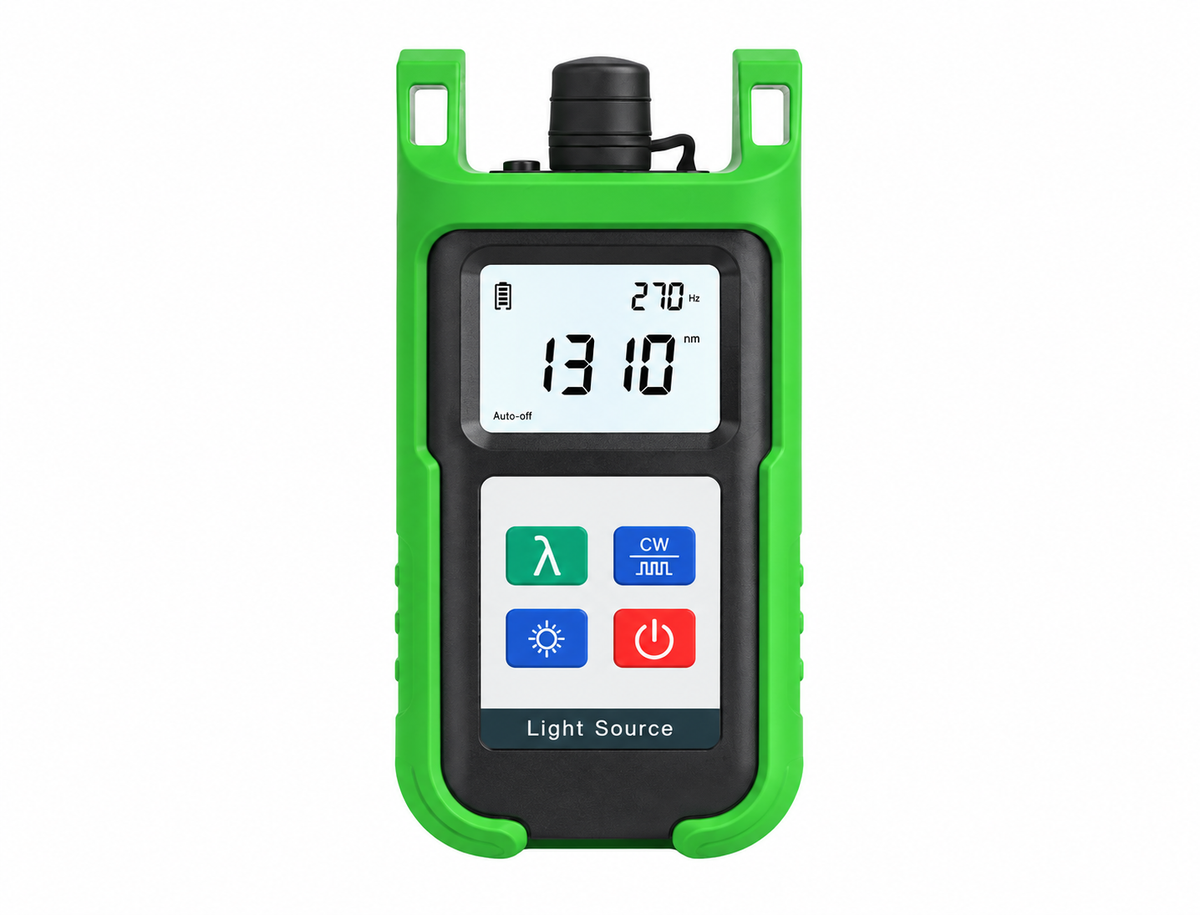

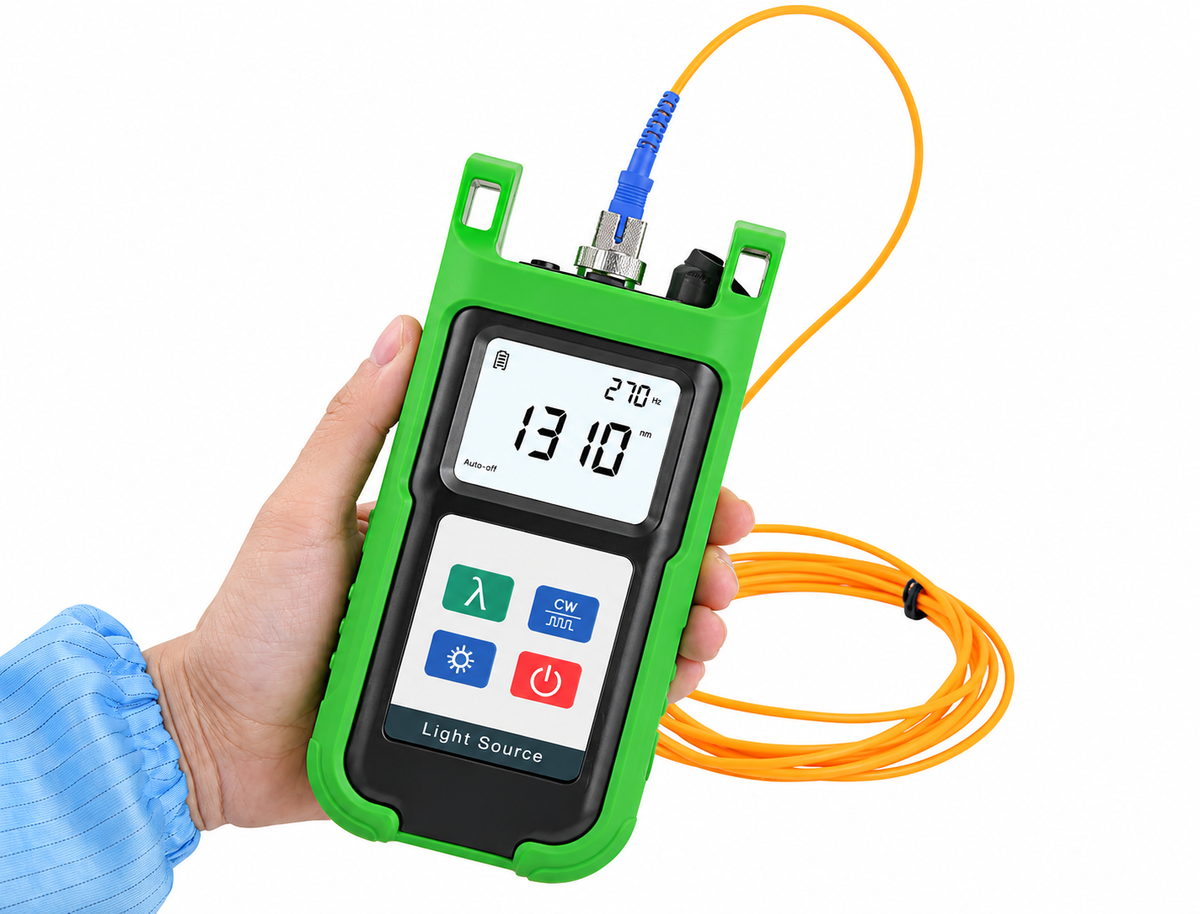

GC2626 - Optical Light Source

Key Features

• 2.5 mm Universal Interface + SC Adaptor
• SM Wavelengths: 1310 nm / 1550 nm
• SM & MM Wavelengths: 850 nm / 1300 nm / 1310 nm / 1550 nm
• Silicone shell protection design, drop-proof up to 2 m
• Typical Output Power: >-5 dBm
• MM Wavelengths: 850 nm / 1300 nm
• PON Wavelengths: 1310 nm / 1490 nm / 1550 nm
• LED backlight function, can work in dark environments (MS model without LED)

Product Specifications

Wavelength

GC2621-S: 1310 + 1550 nm

GC2621-M: 850 + 1300 nm

GC2621-MS: 850 + 1300 + 1310 + 1550 nm ★①

GC2621-PON: 1310 + 1490 + 1550 nm

Typical Output Power

≥-5 dBm

Optical Connector

SC + 2.5 mm Universal (1.25 mm for LC is Optional)

Power Supply

Alkaline Battery (3 × AA 1.5V Batteries)

Output Stability

+0.05 dB / 15 min; +0.1 dB / 8 hours

Modulation Frequencies

CW, 270 Hz, 1 kHz, 2 kHz

Dimensions

160 × 85 × 45 mm

Weight

220 g
