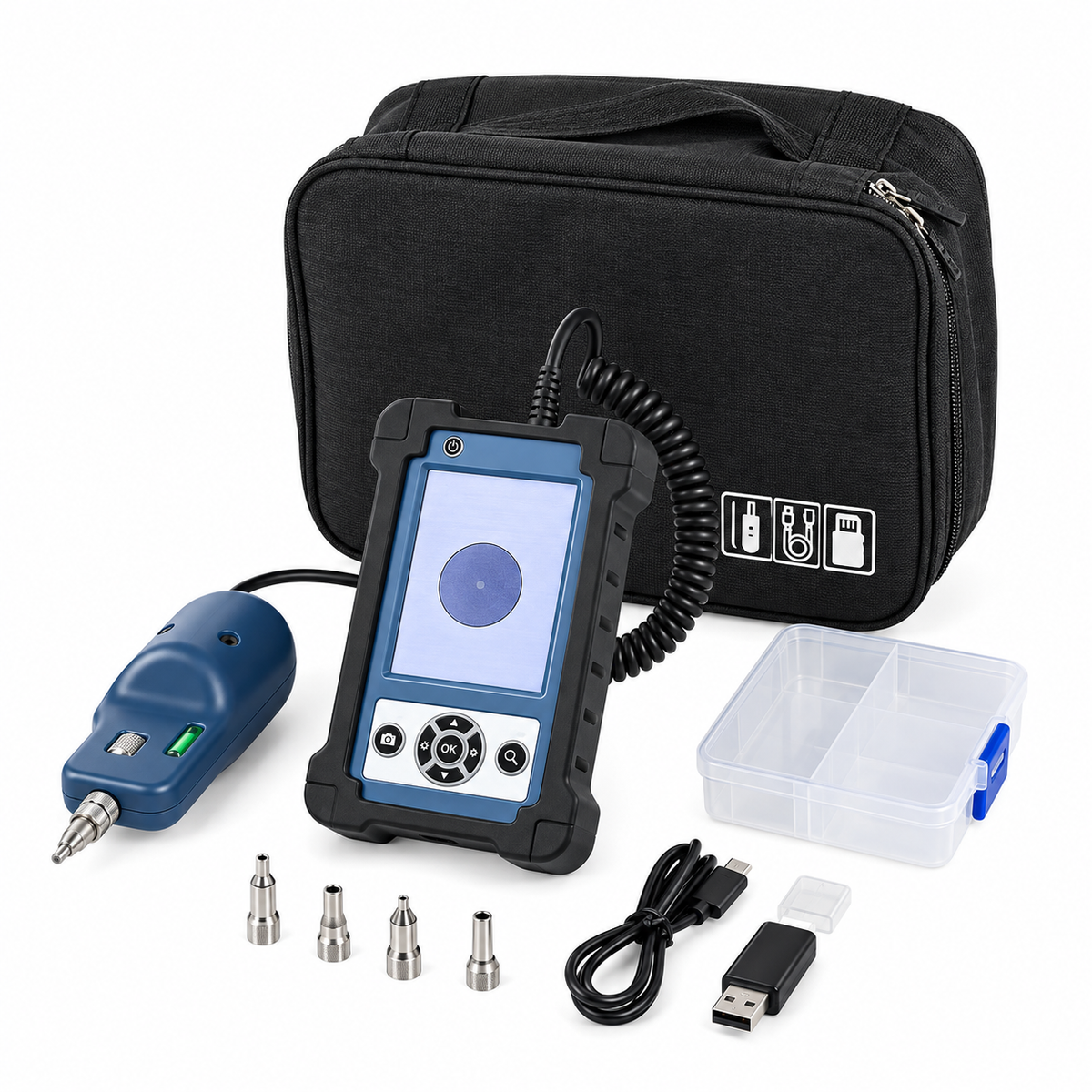

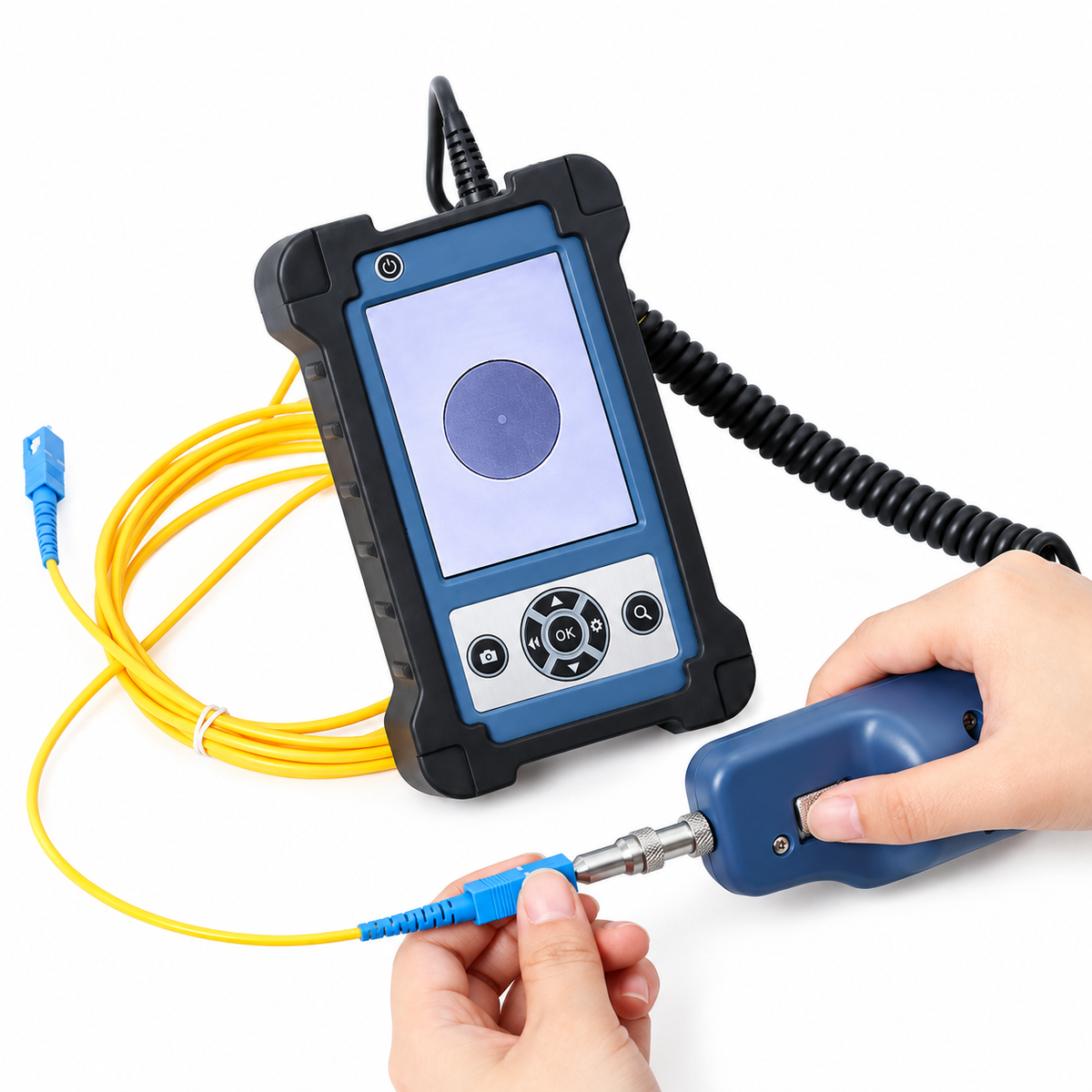

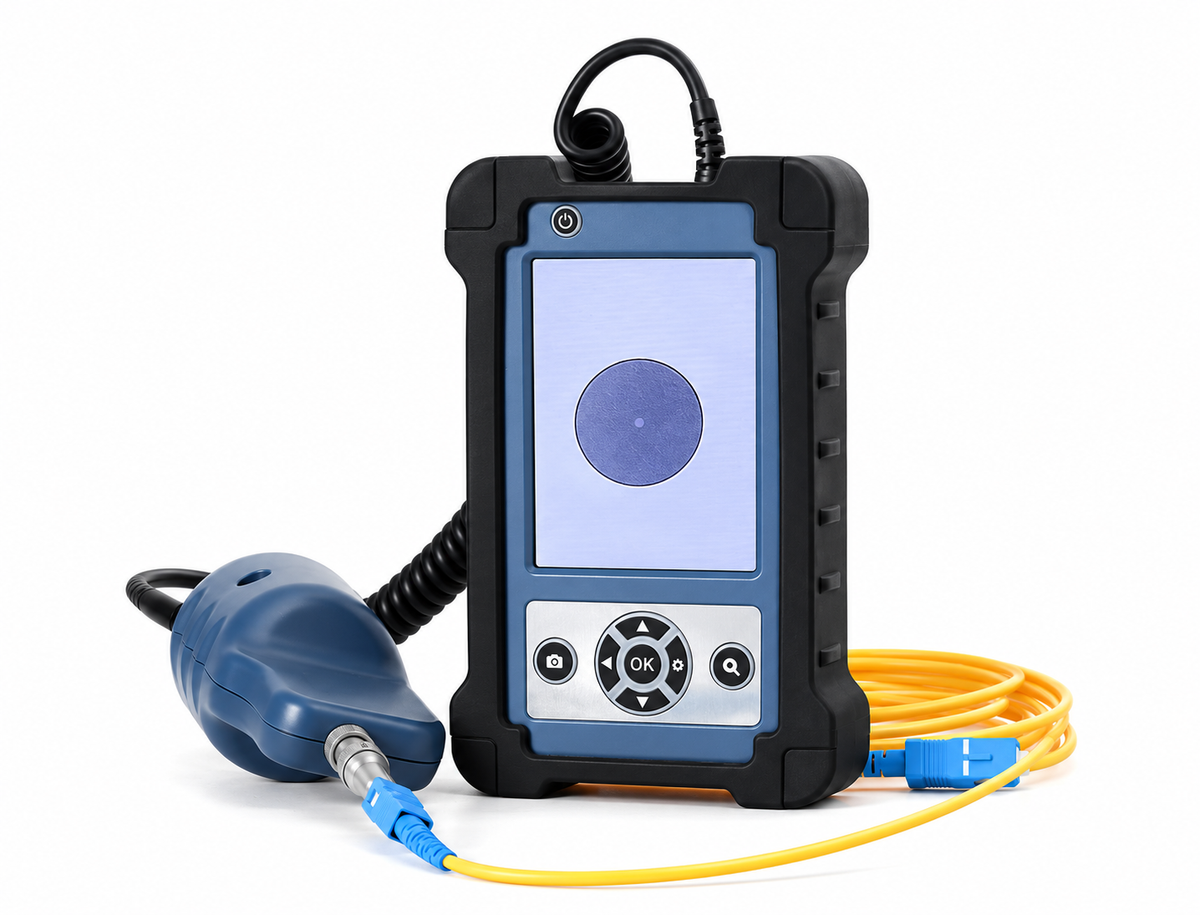

GC2633 - Fiber Inspection Scope

Key Features

• 400x magnification
• 3.5-inch HD LCD display
• 1/3 inch sensor, 300,000 effective pixels
• 4000mAH large capacity Li-ion battery
• Connector types: FC/SC/ST/LC
• Small size, one-handed, convenient and fast
• Rotary metal bracket, stable and convenient
• Supports TF card for video recording and playback
• Removable Silicon Case, reduce the damage by collising or dropping

Product Specifications

Model

GC2633

Magnification

400X

Resolution

Surpass 1.0μm

Visual Range

0.316*0.285μm

Dimension

235(W)*95(D)*30(H)μm

Image Sensor

1/3480

Storage Temperature

-18℃~35℃

Weight

0.11kg

3.5-inch LCD Display

Image Size

22mm

Pixels

307200

Video Frequency

25FPS

LCD Screen

960*240 LCD

Video Output Mode

NTSC/PAL

Playback Format

AVI

User Interface

Compatible Memory Cards

TF

Capacity

8GB

USB

1.1/2.0

Hard Disk Format

FAT32

Power Supply

AC Adapter

DC 5V/2A

Internal Battery

Lithium battery 4000mAh

Media Player

≥7

Weight / W*D*H

0.085kg / 78*22*56mm
