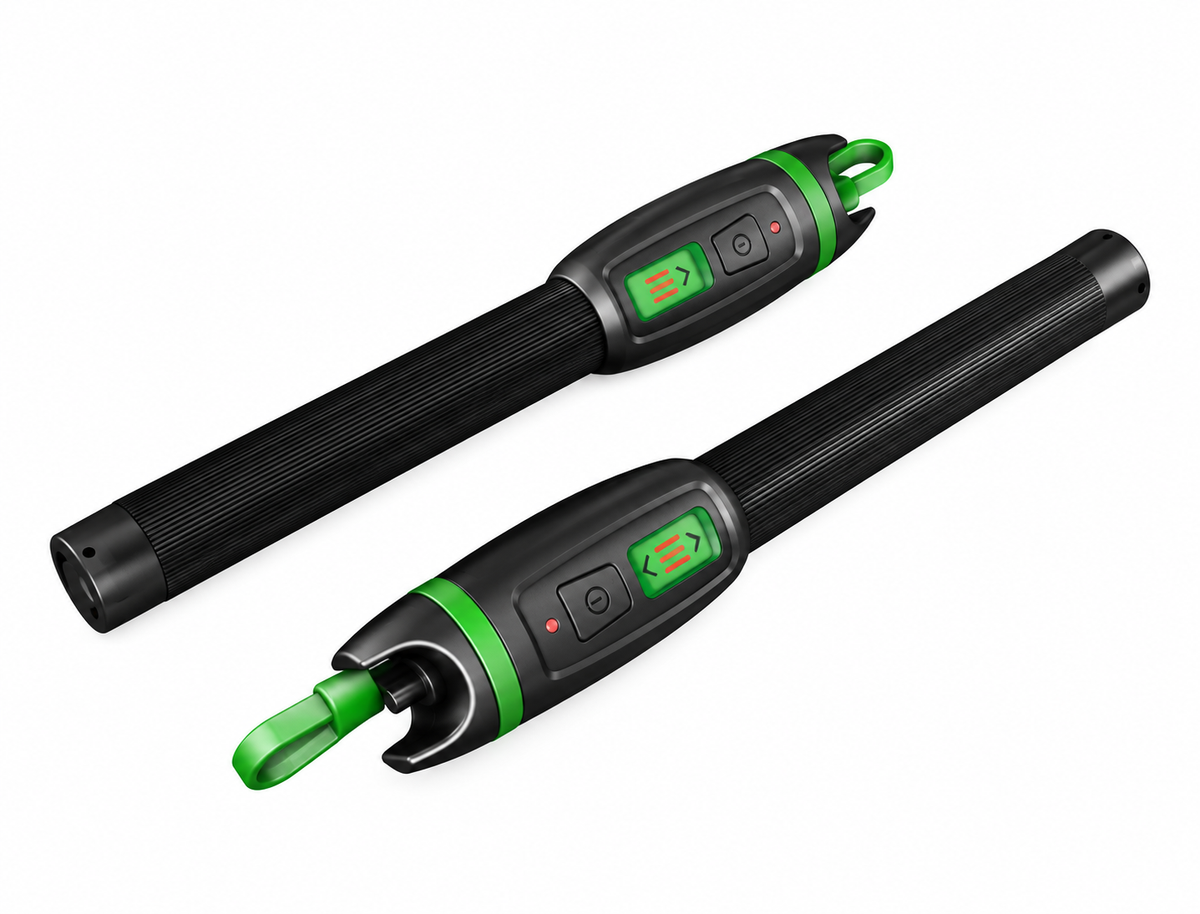

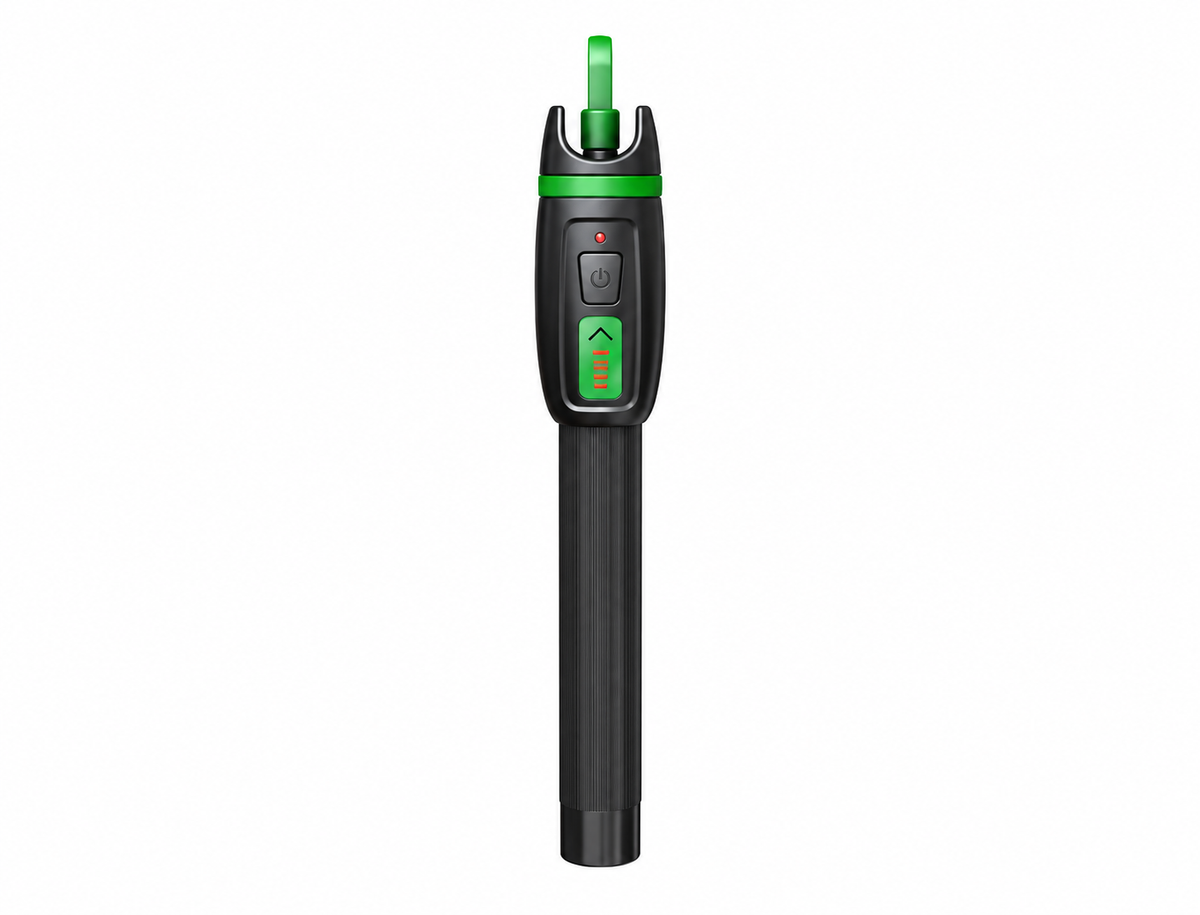

GC2627P - Visual Fault Locator (Pen type)

Key Features

• Bright red laser at 650 nm
• Pulsed and CW operation
• Output Power: 1 mW, 10 mW, 20 mW, 30 mW
• 2.5 mm Universal Connector
• 30 hours of operation (1 mW)
• Pocket-size design
• 1.25 mm adapter for LC (optional)

Product Specifications

Model

GC2622P

Output Power

1 mW, 10 mW, 20 mW, 30 mW

Output Wavelength

650 nm

Laser Type

FP-LD

2 Hz Operation

Yes

Connector Type

2.5 mm Universal for FC, SC, ST

Working Temperature

-20 to 50°C

Storage Temperature

-20 to 50°C

Battery

AA ×2 (Purchased Separately)

Weight

80 g

Shape Size

180 × 24 mm
